Undir girðinguna – Teitur með Stauraskó 95 Xtra

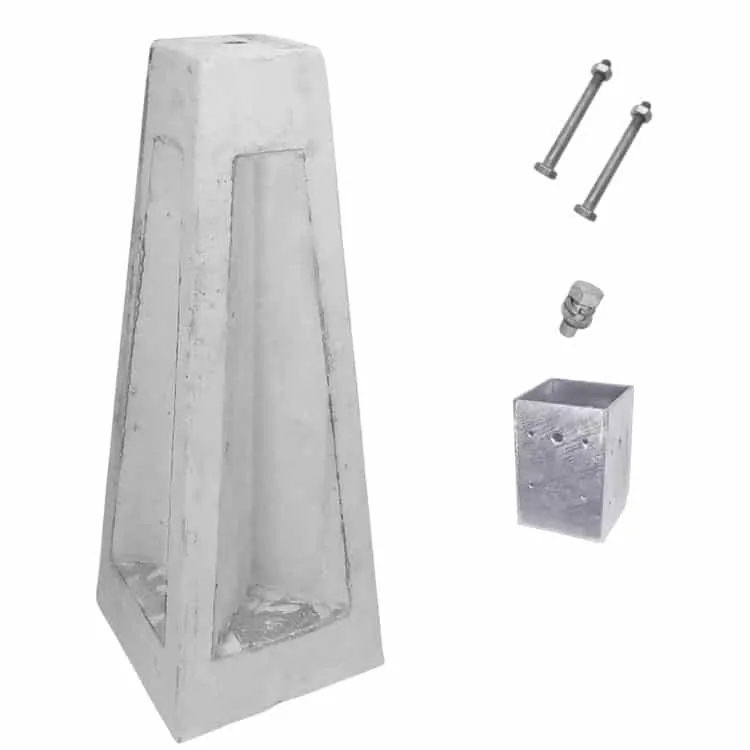

The composite solution contains

• 1 pc. D080 Teitur
• 1 stk. DF054 Stauraskór 95 Xtra HG
• 1 pc. DF021 Bolt M16x50 8.8 HG 934 + Spring washer M16 HG and Washer M16 HG
• 2 pcs. DF028 Bolt M10x110 HG. and Nut

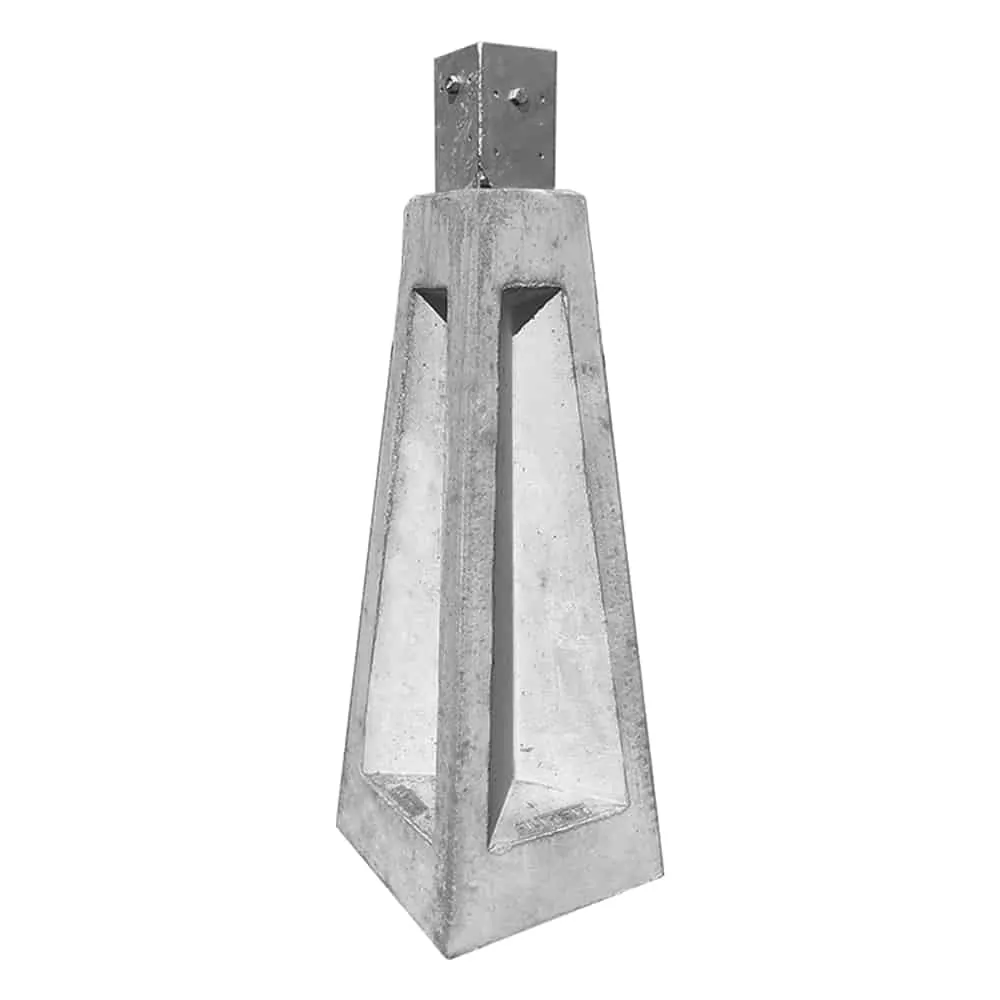

Teitur

Teitur is a powerful pillar that is well suited for digging down as a base for fencing. Huge soil anchorage that reaches a towing weight of 600 kg.

The design of the pillar means that if it is dug down and compressed, it needs multiple weights to pull it up again.
The pillar is 65 kg but the towing weight is 600 kg when it is buried.

Teitur is made of C45 (MPa) concrete.
There is a strong 8mm iron rebar in the pillar that connects to the socket at the top.

Sizes

• Weight 65 kg
• Towing weight 600 kg
• Height 80 cm
• Top 15x15 cm
• Bottom 30 x 30 cm

STAURASKÓR 95 XTRA HG

The Pole shoe is screwed on top of the Dwarves with a bolt M16x50 and the pole is fastened with a bolt M10x110.
The bottom of the shoe also has four holes for screws so it is easy to screw the shoe on top of wooden foundations or a wooden platform.
The pole shoe fits well for 95x95mm wooden poles.
