Stauraskor-95-xtra-teg-T_DF058_Tengistykki_Dvergarnir_Islandshus

STAURASKÓR 95 XTRA teg: T /+45 +45 +45 HG
DF058

Name: STAURASKÓR 95 XTRA teg: T /+45 +45 +45 HG <div class="vnr">DF058</div>
SKU: DF058
Price: 13298.00 ISK
Availability: InStock

13.298 kr.

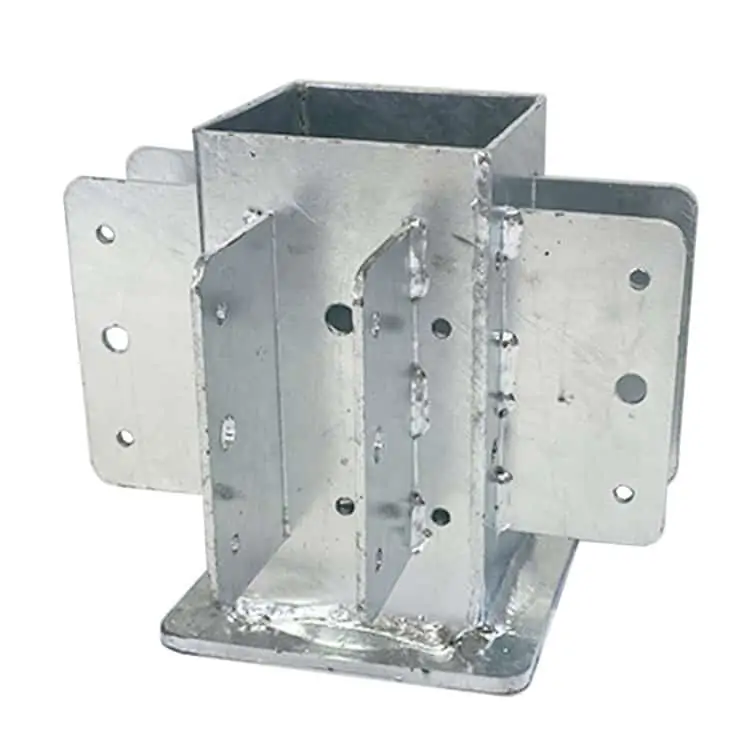

Mount for 95x95 mm pole with 3 brackets for 45 mm beams.

Magnafsláttur

Magn	Afsláttur	Afsláttarverð
10 - 24	5%	12.633 kr.
25 +	10%	11.968 kr.

Einungis þarf að ná tilteknu magni í körfu úr sama flokki til að virkja afsláttinn. Þessi vara er í flokknum: Tengistykki

SKU: DF058 Category: Connectors

&body=#!trpst#trp-gettext data-trpgettextoriginal=4184#!trpen#Check this out: https://dvergarnir.is/en/product/stauraskor-95-xtra-teg-t-45-45-45-hg-df058/#!trpst#/trp-gettext#!trpen#" class="icon button circle is-outline tooltip email" title="Email to a Friend" aria-label="Email to a Friend" rel="nofollow" data-no-translation-title="" data-no-translation-aria-label="" >

Description

STAURASKÓR 95 XTRA teg: T /+45 +45 +45 HG

On three sides of the shoe there is welded a bracket for a 45mm beam that could e.g. be a substructure under a sundeck.

The pole shoe is screwed on top of the Dwarves with a bolt M16x50, the pole is fastened with a bolt M10x110 and the beams with M10x60.
Bolts are sold separately
The bottom of the shoe also has four holes for screws so it is easy to screw the shoe on top of wooden foundations or a wooden platform.
The pole shoe fits well for 95x95mm wooden poles and ensures the stability of the fence without special bracing.
