STAURASKÓR 95 XTRA teg: I /+45 +45 HG DF056
11.070 kr.
Mount for 95x95 mm pole with 2 brackets for 45 mm beams.
| Magn | Afsláttur | Afsláttarverð |
| 10 - 24 | 5% | 10.517 kr. |
| 25 + | 10% | 9.963 kr. |

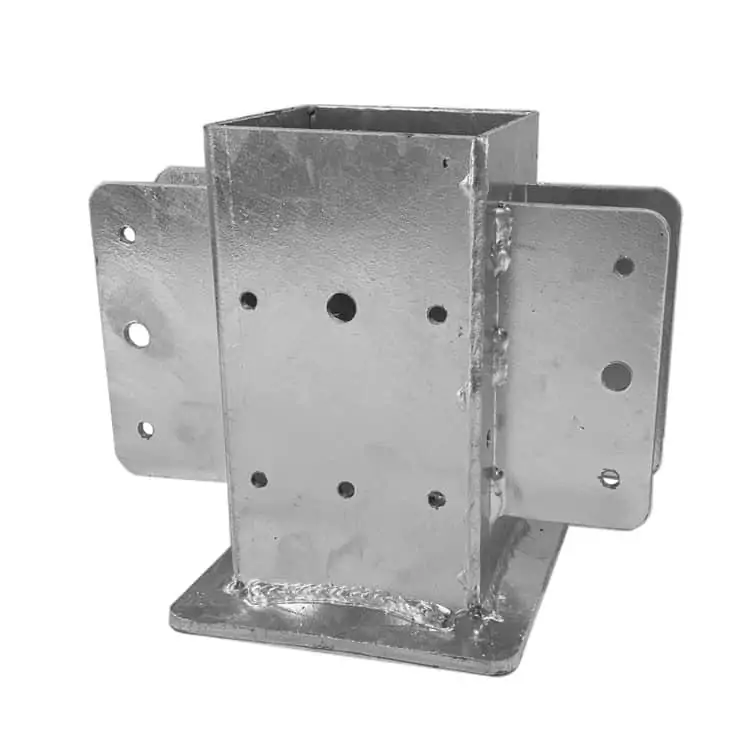

STAURASKÓR 95 XTRA teg: I /+45 +45 HG
On two sides of the shoe there is welded a bracket for a 45mm beam that could e.g. be a substructure under a sundeck.
The pole shoe is screwed on top of the Dwarves with a bolt M16x50, the pole is fastened with a bolt M10x110 and the beams with M10x60.
Bolts are sold separately
The bottom of the shoe also has four holes for screws so it is easy to screw the shoe on top of wooden foundations or a wooden platform.
The pole shoe fits well for 95x95mm wooden poles and ensures the stability of the fence without special bracing.
Sizes
Pole shoe
- Hæð 180 mm
- Length 95 mm
- Width 95 mm
Brackets
- Height 100 mm
- Length 60 mm
- Width 45 mm
